LUMINODE

Advanced data processing based on process engines.

A future proof investment that scales with the ever growing need for more network connected data. Ethernet/DMX processors to convert, route, and merge DMX/RDM data.

LumiNode

Seamless communication between controls and fixtures.

LumiNode’s groundbreaking architecture, based on process engines, offers extensive merging and routing options independent of physical DMX ports, giving you full control. Process engines let you customize how to handle incoming data streams from various controls, protocols, or internal sources, and determine the desired output. This data isn’t limited to DMX/RDM but can include a wide range of lighting control protocols.

Touring & Live entertainment / Studio’s / Cruise ships / Yachts / Theaters / Arena – stadium lighting / Architainment lighting / Theme parks / Campuses / Houses of worship…

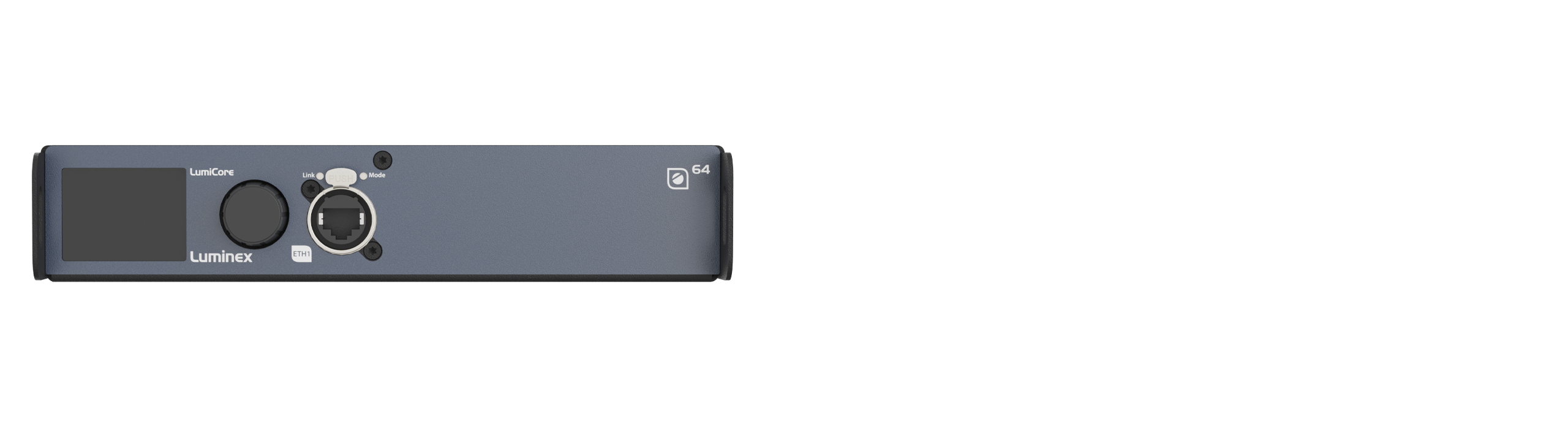

LumiCore

A powerful network processing device.

Focussed on DMX lighting data streams, that can convert, route, and merge the most common ethernet lighting protocols. Up to 64 process engines, each with up to 4 inputs, meaning you may process 256 input universes towards 64 output streams. Ready for tomorrow’s demands of creating newly defined universes and for network merging modes.

Broadcast and recording studios / Touring & Live entertainment / Studio’s / Cruise ships / Yachts / Theaters / Arena – stadium lighting / Architainment lighting / Theme parks / Campuses / Houses of worship…



Set-up a pro AV network without IT knowledge.

Built-in WebUI

Configuration and monitoring individual nodes

The built-in web UI delivers a great user experience. Process engines can be easily configured in a very intuitive workflow. Just decide what you like to do with your lighting data by choosing the mode of the process engine.

Depending on the chosen merging/routing policy of the engine, the UI presents all possible input configurations. From here you just connect your input streams and your output connections. Everything can be easily stored and recalled into profiles for later usage.

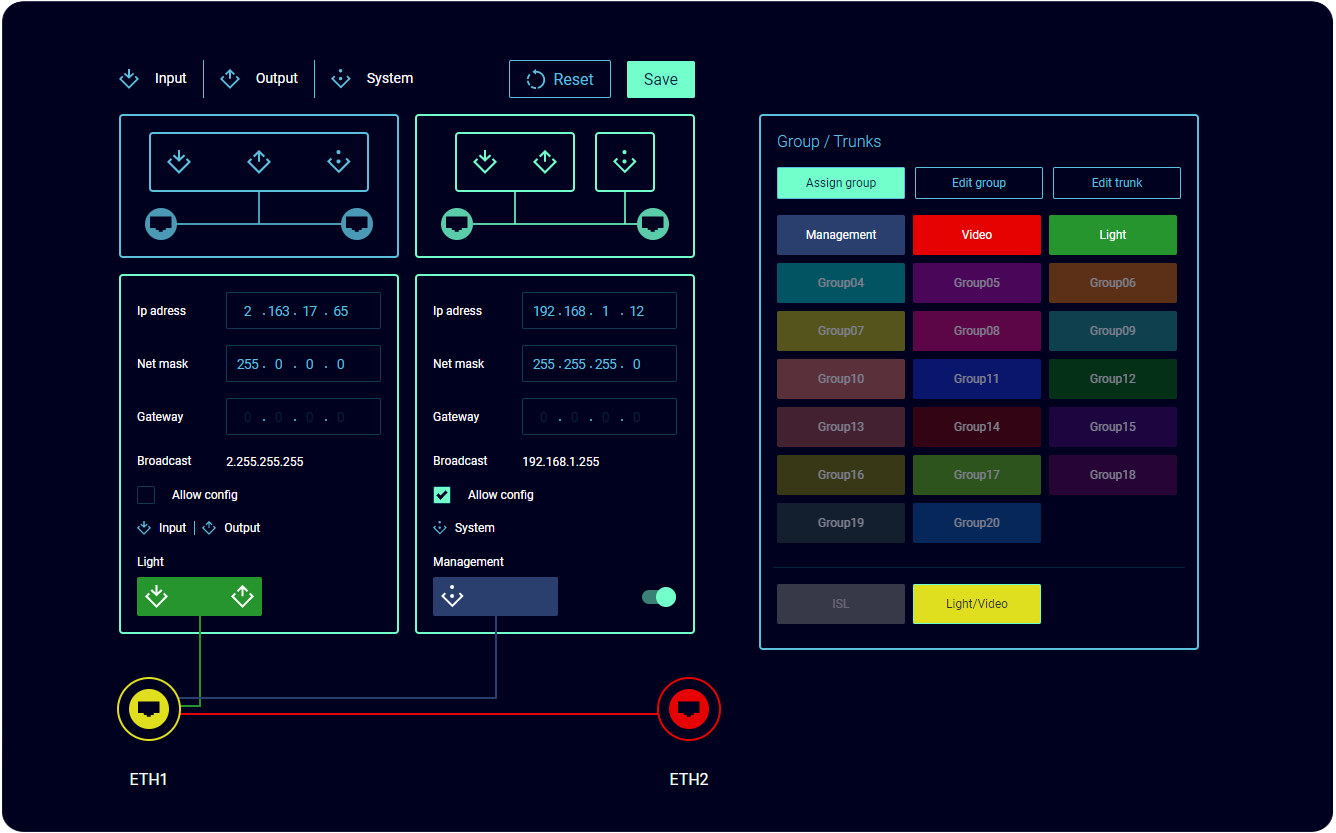

Advanced networking

Use the full capacity of the Gigabit connectivity

Send different data in a different Group (VLAN). Setup a separate interface for IT monitoring without interfering with critical lighting data. The known Group (VLAN) technology from GigaCore switches is also available in the LumiNode product family. This allows you to freely assign a different Group (VLAN) to the different network connectors and to the node’s interfaces. ISL (Inter Switch Link) and custom trunks are available to transfer different VLANs on one ethernet connection.

Find the right LumiNode for your projects

Need help? Contact us to help you choose the right products for your network.
