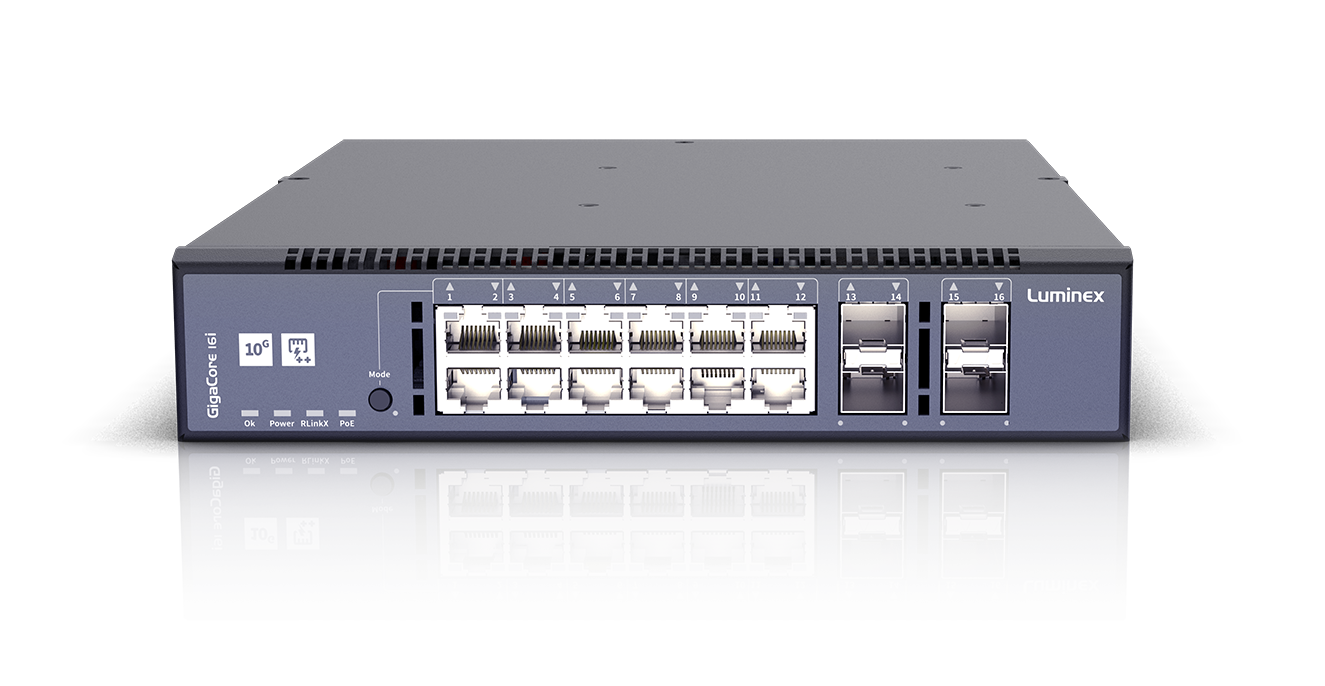

GigaCore 16i

Key Features

Most suitable applications
Installations

PoE
PoE ++ Optional (up to 450W)

RLinkX (Link redundancy)
Yes

Groups (VLAN segmentation)
Yes

MultiLinkX (Link aggregation)
Yes (With future FW upgrade)

Profile manager
Yes

Memory
Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage

MAC address table
16384 entries

Address learning / Aging
Self learning, Auto aging

Switching throughput 64 Byte
77318Mpps

Switching capacity
104Gbps

Jumbo frames
MTU up to 12000

IGMP support
Yes (V1/V2/V3)

IGMP snooping
Yes, enabled by default

Port sensing
Auto negotiation

Auto crossover
MDI / MDIX

Auto sensing
Full or Half Duplex (Gigabit is Full Duplex)

Connectivity

Ethernet connectivity
12 x RJ45 connectors (1Gbps))

Fiber connectivity
4 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)

Ethernet port speed
1Gbps

Serial
1 x USB C

Power

Power connectivity
1 x IEC (C14)

Power input
100-240VAC, 50-60Hz

Power consumption
Maximum 60W - Maximum 480W (Depending on configuration)

Fuse
NA

Backup power input
Through optional second power supply unit (PoE model only)

Backup PoE power input
Through optional second power supply unit (PoE model only)

PoE
PoE ++ Optional (up to 450W)

Protocols

Supported protocols
Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet, HogNet, RTTrPL (BlackTraX), IPMX, NDI, IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP) and more...

Sound protocol compliance
Yes (low jitter)

Ethernet compliance
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2,IEEE 802.1 BA-2011 AVB, IEEE 802.1as (gPTP)

Configuration

Display and jog
NA

Configuration
Network wide configuration through Araneo software, through the built-in web server,

Status LEDs

  • Global status LEDs: Device, power, PoE power and mode
  • Port status LEDs: PoE, groups, link/activity and port speed
  • Dark mode available

Colored RGB LEDs
Yes

Physical

Mounting
Rack, 100mm x 100mm Vesa spaced mount

Enclosure
Robust metal housing

Dimensions (W x D x H)

  • 220x296,4x43,2 mm
  • 8,66x11,67x1,7 inch

Weight
2,4kg

Packaging
550 mm x 335mm x 68 mm

Environment

  • Operating temperature: 0 to +50 °C
  • Storage temperature: -10 to +70 °C
  • Humidity (non condensing): 5 to 95% RH

Noise level @1m
TBD

BTU

  • 16i : Maximum BTU = 68.24 BTU/hr
  • 16i with PoE : Maximum BTU = 221.78 BTU/hr

Certificates/Approvals
cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS

Standards
IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024, EN61000

Product codes

Product codes

  • LU 01 00090-10G / GigaCore 16i-12x1G-4x10G(SFP+)
  • LU 01 00090-10G-POE / GigaCore 16i-12x1G-4x10G(SFP+)-PoE++
