多様性。機能性。信頼性。

これまでのギガビットスイッチの中でもっとも多機能且つプラグ＆プレイな製品となるGigaCore 10は、簡単設定、柔軟なオプション、コンパクトサイズと堅牢なハードによる信頼性が重要な要素になるライブイベントやツアー業界の厳しさに対応するよう特化して設計されています。

多様性

この製品からは、その本質的な柔軟性を感じる事ができるでしょう。このユニットは、トラス、壁またはラックに取り付けることができ、非常に多くのケースで活用が可能です。また、簡単なグループ機能では、システム全体を再プログラムすることなく、グループを変更したり、ポートの設定を変更したり、デバイスをネットワークに追加することができます。

全てのマウンティングオプションを表示

シングルラックマウント
(ブラケット付属)

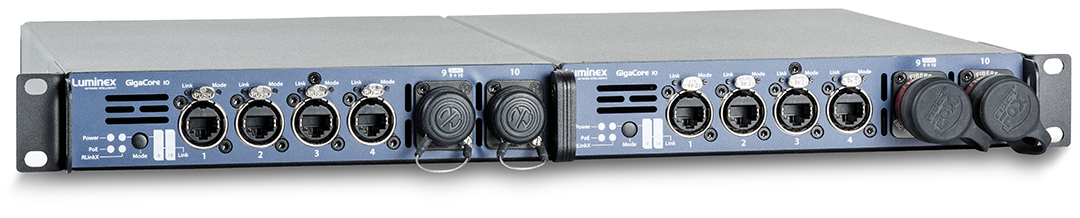

Combined rack mount
(primary/secondary)

トラスマウント
(クランプは同梱されません)

ウォールマウント
(ブラケットはオプション)

シングルラックマウント
(ブラケット付属)

Combined rack mount
(primary/secondary)

トラスマウント
(クランプは同梱されません)

ウォールマウント
(ブラケットはオプション)

Effortless.

The GigaCore’s plug-and-play technology is a real time-saver for all AV professionals. The fully pre-configured Ethernet switch has an easy group function with RGB LED indicators, that is easily configured through an intuitive web interface. You can set-up one solid converged network for lighting, audio and video in just minutes without bandwidth issues.

Show web interface

Effortless.

The GigaCore’s plug-and-play technology is a real time-saver for all AV professionals. The fully pre-configured Ethernet switch has an easy group function with RGB LED indicators, that is easily configured through an intuitive web interface. You can set-up one solid converged network for lighting, audio and video in just minutes without bandwidth issues.

Show web interface

GigaCore 10 web interface - device settings

GigaCore 10 web interface - port settings

信頼性

GigaCore 10は、頑丈な筐体と丈夫なコネクタを備えており、ツアーやライブイベントに最適なネットワークスイッチにデザインされています。ソフトウェアは、AV業界のほぼすべての一般的なプロトコルに対して動作検証され、ネットワークに接続するほぼすべての機器が完璧に動作します。究極の安全性のために、ハーフラックサイズの2つのユニットを1Uラックスペース内で組み合わせて、プライマリ/セカンダリのモードでご活用することも可能です。

頑丈なハウジングの製品写真を表示

Focus on being creative again.

Stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!

N

AV業界向けにカスタマイズ

Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.

N

Easy set-up with intuitive web interface

Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).

N

RGB LED indication

Quickly identify groups, PoE+ status and redundancy settings through the front panel’s coloured LEDs.

N

Link Aggregation

Aggregate several Inter-Switch Links (ISL) into one virtual link to increase bandwidth between switches.

N

究極の冗長化

RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

N

PoE+ (オプション)

Deliver up to 130W over Ethernet to power up fixtures, nodes, cameras, intercom systems and other devices.

The ultimate touring companion with rugged Fiber.

The GigaCore 10 has two slots for rugged Fiber connectors (option between Neutrik of Fiberfox) for long distance coverage. So when harsh environments such as tours and live events are your daily life, the GigaCore 10 is likely to become your best friend you can always rely on.

Specifications

The GigaCore 10 is by far the most versatile Luminex Gigabit switch ever built. The half 19” unit with front and rear connectivity is designed to be mounted in a truss, in a rack or even on a wall. The robust metal enclosure and rugged Ethercon and (optional) Fiber connectors make this unit excel in truss mounted applications with Ethernet enabled devices, such as moving lights, PA systems, microphones, cameras or general stage connectivity. But also to ensure ultimate redundancy the GigaCore 10 is an excellent choice. Just by coupling two units, AV professionals can create a full 19” rack combination with a primary and secondary unit.

Most suitable applications: Touring and live events
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: 4Mb
MAC address table:
Address learning / Aging: Self learning, Auto aging
Switching throughput: 22Gbps
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

Ethernet connectivity: 8 x Shielded Neutrik Ethercon connectors
Fiber connectivity: 2 x slot for rugged fiber connectors
Ethernet port speed: 1Gbps
Serial: None

Power connectivity: 1x Neutrik powerCON TRUE1
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 20W (maximum 150W with PoE Supply Unit)
Fuse: None
Backup power input: None
Backup PoE power input: None
PoE supply: Optional on all ports (up to 130W in total)

Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

Display and jog: None
Configuration: Through the built-in web server
Status LEDs:
- Global status LEDs: Power, PoE power, RLinkX and mode
- Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity and port speed
- Dark mode available
Colored RGB LEDs: Yes

Mounting: Truss, rack or wall
Enclosure: Robust metal housing
Dimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")
Weight: 2,8 kg
Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")
Environment:
- Operating temperature: 0 to +50 °C (non-PoE version), 0 to +40 °C (PoE version)
- Storage temperature: -10 to +70 °C
- Humidity (non condensing): 5 to 95% RH
Certificates/Approvals: cSGSus Mark, CE, CB certificate, RoHS
Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024 (pending for approval)

Product codes:
- LU 01 00058 (GigaCore 10)
- LU 01 00058-POE (GigaCore 10 + PoE)
- LU 01 00058-NDM (GigaCore 10+ Neutrik DUO MMF)
- LU 01 00058-POE-NDM (GigaCore 10 + Neutrik DUO MMF + PoE)
- LU 01 00058-NQM (GigaCore 10 + Neutrik QUAD MMF)
- LU 01 00058-POE-NQM (GigaCore 10 + Neutrik QUAD MMF + PoE)
- LU 01 00058-NDS (GigaCore 10 + Neutrik DUO SMF)
- LU 01 00058-POE-NDS (GigaCore 10 + Neutrik DUO SMF + PoE)
- LU 01 00058-NQS (GigaCore 10 + Neutrik QUAD SMF)
- LU 01 00058-POE-NQS (GigaCore 10 + Neutrik QUAD SMF + PoE)
- LU 01 00058-F2M (GigaCore 10 + Fiberfox 2 ch MMF)
- LU 01 00058-POE-F2M (GigaCore 10 + Fiberfox 2 ch MMF + PoE)
- LU 01 00058-F4M (GigaCore 10 + Fiberfox 4 ch MMF)
- LU 01 00058-POE-F4M (GigaCore 10 + Fiberfox 4 ch MMF + PoE)
- LU 01 00058-F2S (GigaCore 10 + Fiberfox 2 ch SMF)
- LU 01 00058-POE-F2S (GigaCore 10 + Fiberfox 2 ch SMF + PoE)
- LU 01 00058-F4S (GigaCore 10 + Fiberfox 4 ch SMF)
- LU 01 00058-POE-F4S (GigaCore 10 + Fiberfox 4 ch SMF + PoE)

*Note: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice.

Free software included

LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for GigaCore’s, it adds high value to your project monitoring and preparation.
